Electric Gate Restoration

This project was started in April 2022 and the objective of this project was to restore an exterior electric gate that had not worked for over 15 years.

Table of contents

[[TOC]]

Context

In my backyard, there has always been an electric gate that I have rarely, if ever, seen work.

I decided to fix it because I thought I had the DIY and electronic skills to make it work again.

This gate gives access to different houses and therefore its access is shared. This implies that its operation should be low, easy and unencumbered.

It has not worked for about fifteen years since it requires a 230V three-phase power supply. The subscription was cancelled to have only single-phase and the gate remained open since that day.

Before anything

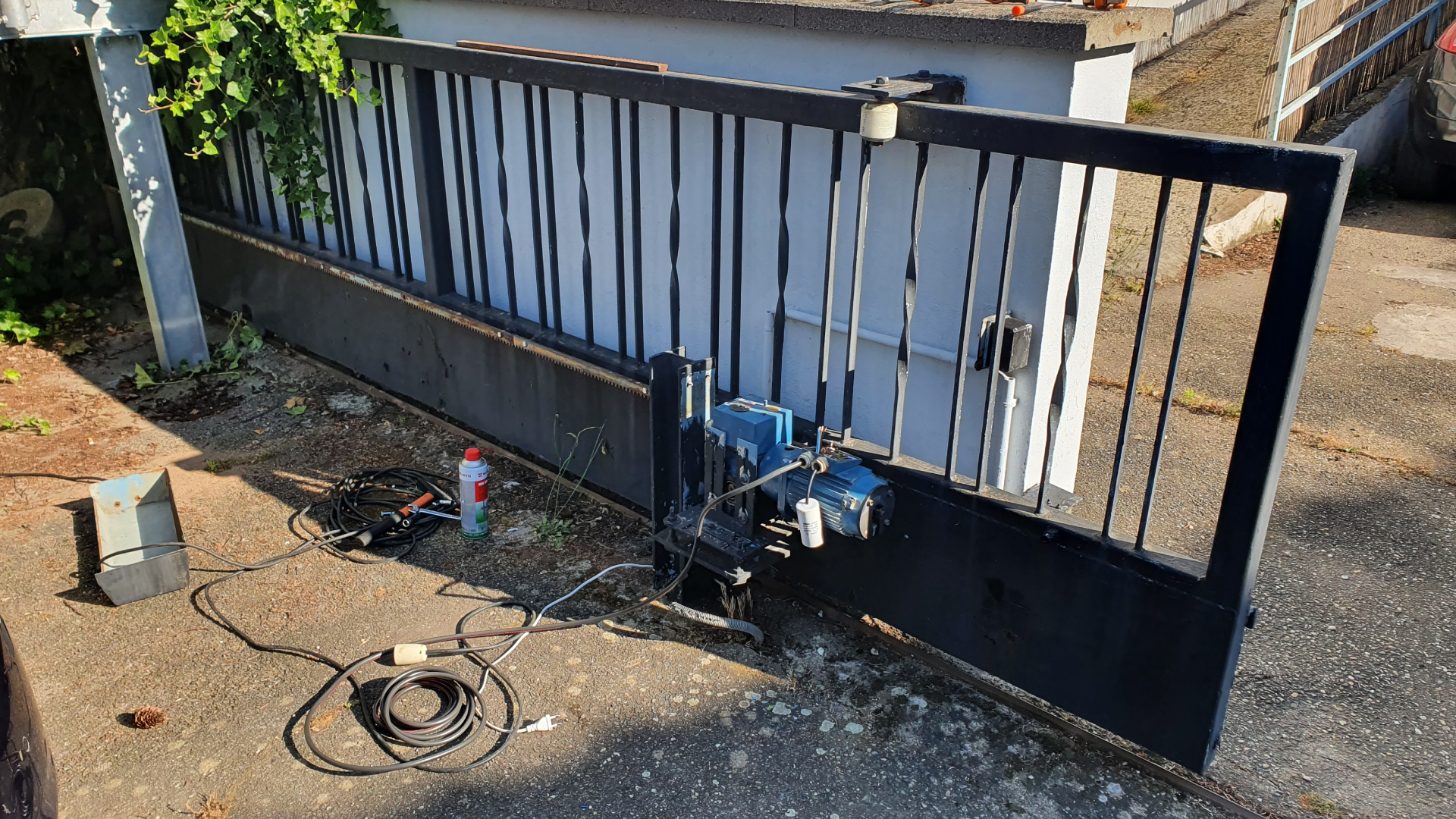

The state of the portal before starting my project was as follows:

• A three-phase motor that needs to run on single-phase (conversion required).
• Mechanical limit switches to be changed
• A broken photoelectric sensor to be changed
• The electronics of the gate to be completely redone

Required elements

Hardware

For this project, I made an electronic board to build a reliable, clean and easy to install system: LiHoCo Yard gate PCB v1.0

I also needed other components such as:

• Mechanical limit switches
• Photoelectric sensor
• Warning light
• 433MHz RF remote control
• Junction box
• Cable

Software

ESPhome was the easiest solution to implement the portal system. I used it to make my ESP32 program

Developpement

Step 1: Check of the working existing components

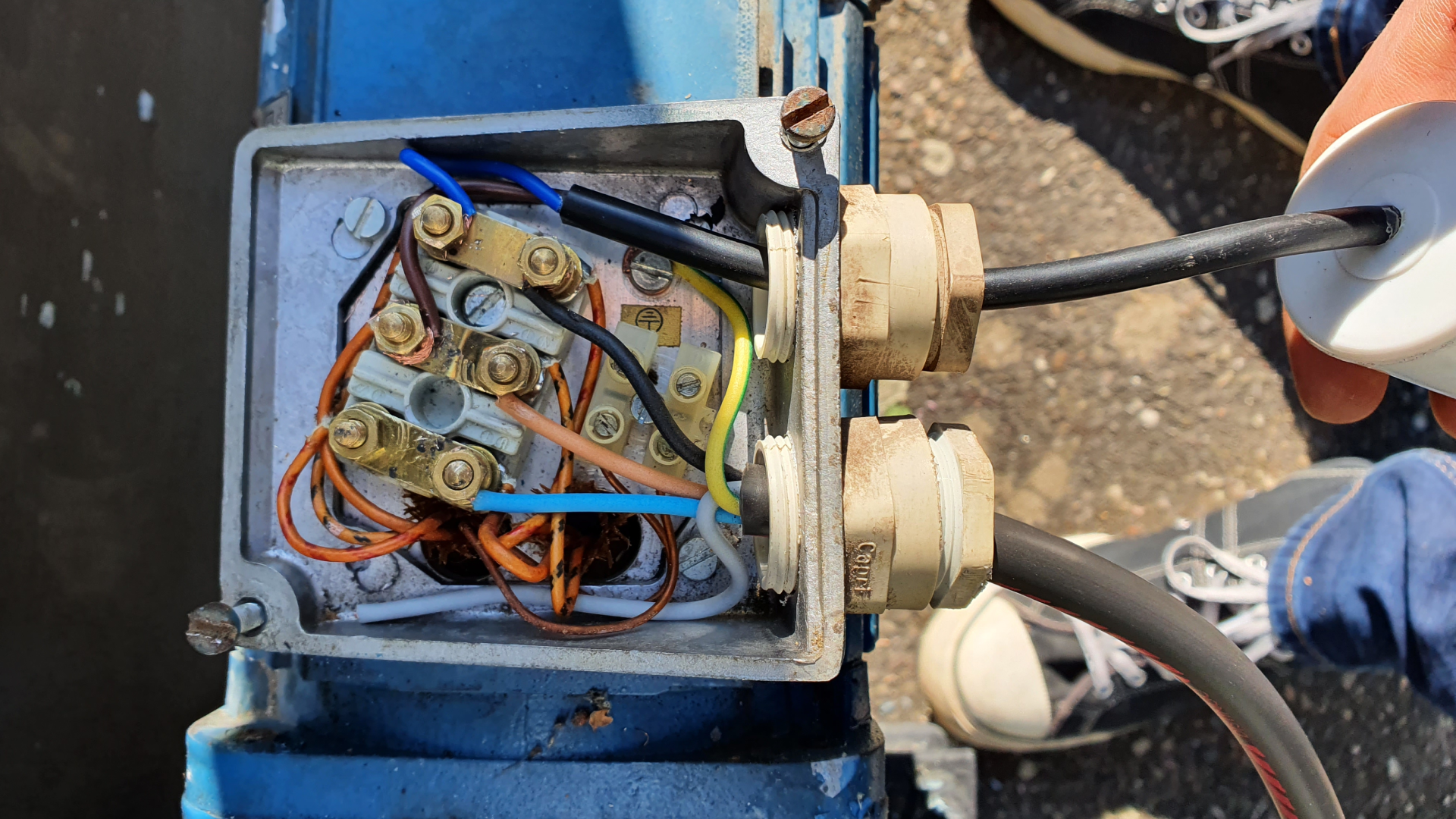

The engine was the first element I tested to verify the feasibility of the project. After a little research to make a three-phase asynchronous motor work on an alternating current, I was able to verify that it turned correctly. I made the conversion from three phase to single phase using a capacitor of 25µF 450V. connected between 2 motor coils:

I also changed the oil of the 45/1 gearbox.

All the rest was not in working order anymore but it doesn't matter.

Step 2: Make a prototype circuit

The goal was to make a circuit quickly to develop the program with ESPhome and check if everything works as I wanted.

Points of improvement

Security : No rolling code

The EV1527 433MHz receiver module does not allow code rolling as the HCS301 KeeLoq protocols do. Nevertheless, since the gate does not give any access to the interior of a house, this point does not really pose a problem.
